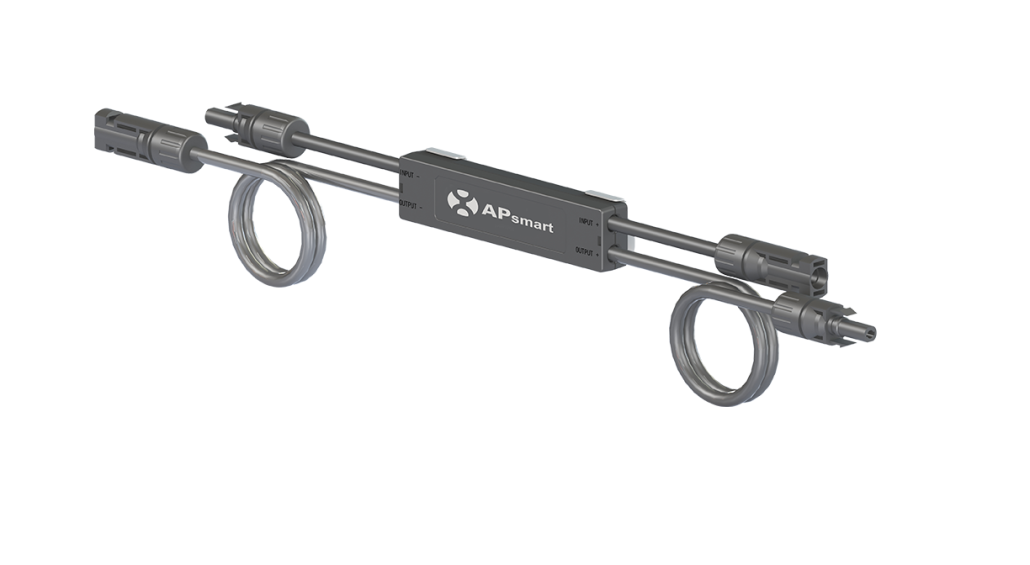

APsmart RSD-S-PLC Module-Level Rapid Shutdown Device, 15A
SKUAPSM-RSD-S-PLC-415
The APsmart RSD-S-PLC is a module-level rapid shutdown device that uses power-line communication (PLC). APsmart says it meets SunSpec requirements: it keeps its PV module connected while it receives a heartbeat signal from the APsmart transmitter, and shuts down when the signal...
Couldn't load pickup availability
Need it anyway? Request a written quote. No payment is taken.
Delivery
Shipping weight 1.38 lb. Shipping, including freight for large items, is calculated at checkout before you pay.
Need help choosing or installing?
Get one hour of personalized help with equipment selection, system questions, commissioning, or troubleshooting. Purchase your session, then use the scheduling link provided after checkout to choose an appointment.
- Trusted since 1999
- Ships from US warehouses
- 4.8 stars · 681 Google reviews
Product Overview
The APsmart RSD-S-PLC is a module-level rapid shutdown device that uses power-line communication (PLC). APsmart says it meets SunSpec requirements: it keeps its PV module connected while it receives a heartbeat signal from the APsmart transmitter, and shuts down when the signal stops.
This listing is APsmart's RSD-S-PLC in the 415 ordering series (15 A, 1.2 m output cable). APsmart makes the RSD-S-PLC in 1000 V (RSD-S-PLC-A) and 1500 V (RSD-S-PLC-B) versions; check the unit label for the model and ordering code. Meets NEC 2017, 2020&2023 (690.12) requirements (APsmart RSD-S-PLC Datasheet Rev 3.3).
Best For
- Module-level rapid shutdown with an APsmart Transmitter-PLC: Or with an inverter that has an integrated SunSpec-certified rapid shutdown transmitter, per APsmart.
- Module currents within the 15 A rating: Confirm the voltage class (1000 V or 1500 V UL) from the unit label before design.
Key Features & Specifications
| Specification | Details |
|---|---|
| Product type | Module-level rapid shutdown device, PLC (SunSpec) |
| Ordering codes in the 415 series (per APsmart) | 415001: 1000 V UL, 15 A, 1.2 m cable, customized connector (Rev 3.0, 2023-10-07, apsmartglobal.com). 415002: 1500 V UL, 15 A, 1.2 m cable, Stäubli MC4 PV-KBT4&KST4 (Rev 3.0–3.3). 4150XX: customized connector; Rev 3.1/3.3 list it under 15 A RSD-S-PLC-B (1500 V UL). Check the unit label for the ordering code (415001 / 415002 / 4150XX) and voltage class before design. |
| Voltage class (per APsmart) | RSD-S-PLC-A = 1000 V; RSD-S-PLC-B = 1500 V (Rev 3.3; cCSAus certificate A33). Check the unit label. |
| Input operating voltage (per APsmart) | 10.5-80 V |
| Maximum continuous input current (per APsmart) | 15 A |
| Maximum short-circuit current Isc (per APsmart) | 25 A |
| Maximum series fuse rating (per APsmart) | 30 A |
| Cables (per APsmart) | Input 250 mm / output 1200 mm; 12 AWG (UL) |
| Dimensions (per APsmart) | 5.5 × 1.3 × 0.7 in (140 × 32 × 18 mm), without cable and connectors |
| Operating ambient (per APsmart) | −40°F to +185°F (−40°C to +85°C) |
| Enclosure rating (per APsmart) | NEMA Type 6P/IP68 |
| NEC 690.12 (per APsmart) | Meets NEC 2017, 2020&2023 (690.12) requirements |
| Warranty (per APsystems) | 25 years from the warranty start date defined in APsystems' limited warranty |
| Source | APsmart RSD-S-PLC Datasheet Rev 3.3; APsmart RSD-S-PLC Datasheet Rev 3.0 (2023-10-07, apsmartglobal.com); APsmart RSD-S-PLC / Transmitter User Manual NA Rev 4.4; APsystems Limited Warranty for Rapid Shutdown Devices & Transmitter, US L3.1; cCSAus certificate A33 |
What You May Also Need
Usually required
- An APsmart Transmitter-PLC, or an inverter with an integrated SunSpec-certified transmitter: See the APsmart Transmitter-PLC Outdoor Kit (408006).
- One RSD per module.
May be required
- Rapid shutdown labels: APsmart says to place the rapid shutdown system label within 1 m (3 ft) of the Transmitter-PLC or AC disconnect. See PV Labels 05-523 (2023 NEC).
- Other rapid shutdown parts: See rapid shutdown.
Optional upgrades
- None. The RSD and a SunSpec transmitter make up the rapid shutdown path.
Check current manufacturer documentation before combining components, especially batteries, inverters, communications equipment and system-control hardware.
Important Considerations
- Check the unit label. Confirm whether the unit is RSD-S-PLC-A (1000 V) or RSD-S-PLC-B (1500 V) and which ordering code (415001 / 415002 / 4150XX) it carries before design.
- Connectors. APsmart says using a different type of DC connector will not be covered by the warranty. Check the connector on the unit against your modules.
- Disconnect AC first. APsmart says not to disconnect the PV module from the RSD-S-PLC without first disconnecting the AC power.
- Core routing. Pass either both positive or both negative cables through a core, never one of each, and follow the core diagrams in APsmart's current user manual.
- Same AC branch circuit. APsmart's user manual says the power supply of the Transmitter-PLC and the inverter MUST be on the same AC branch circuit to meet rapid shutdown requirements.
- Inverter list. For inverters with an integrated SunSpec-certified transmitter, check the APsmart Compatible Inverters list (apsmartglobal.com), viewed Oct 8, 2026; no revision number.
- Inverter pairing. Do not assume a specific string inverter, hybrid inverter or microinverter model is listed. Check the maker's current certified list and the document revision or view date before design.
