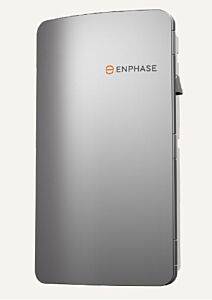

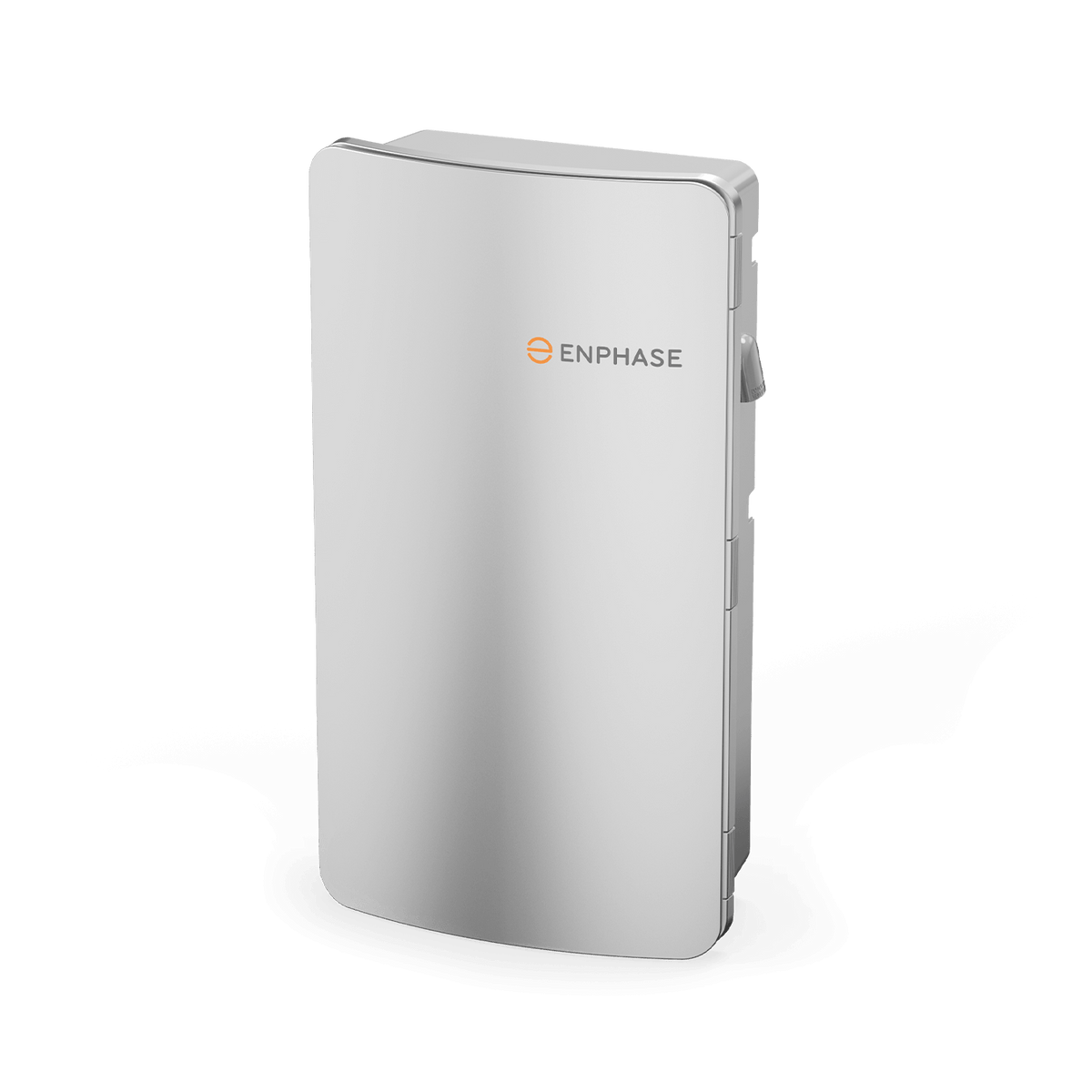

Enphase SC200D111C240US01 IQ System Controller 3

Enphase Enphase IQ System Controller 3
The Enphase IQ System Controller 3 is a device that connects your home to grid power, IQ Batteries, and solar PV with Microinverters. It is recommended to use IQ System Controller 3 for all new installs using IQ8 Series Microinverters. The device provides microgrid interconnection device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure. It consolidates interconnection equipment into a single enclosure and streamlines grid-independent capabilities of PV and storage by providing a consistent, pre-wired solution for residential applications.
Electrical Specifications
Nominal voltage / range (L-L) 240 VAC
Nominal frequency / range 60 Hz / 56 - 63 Hz
Maximum continuous current rating: 160A
Maximum output overcurrent protection device: 200A
Maximum input overcurrent protection device: 200A
Maximum overcurrent protection device rating for generator circuit: 80A
Maximum overcurrent protection device rating for storage circuit: 2x80A
Breaker rating (pre-installed): 40A between L1 and Neutral; 40A between L2 and Neutral
Continuous rated power: 3600VA
Maximum continuous unbalance current: 30A @ 120V
Peak unbalanced current: 80A @ 120V for two seconds
Mechanical Data
Environmental rating: Outdoor, NEMA type 3R, polycarbonate construction
Dimensions (WxHxD): 19.7 in x 36 in x 9.7 in (50cm x 91.6cm x 24.6cm)
Weight: 87 lbs.
Cooling: Natural convection, heat shield
Altitude To 8200 feet
Warranty: 10 years
