Enphase Energy

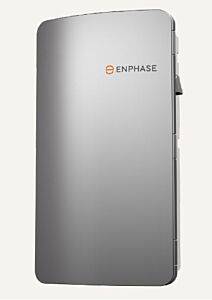

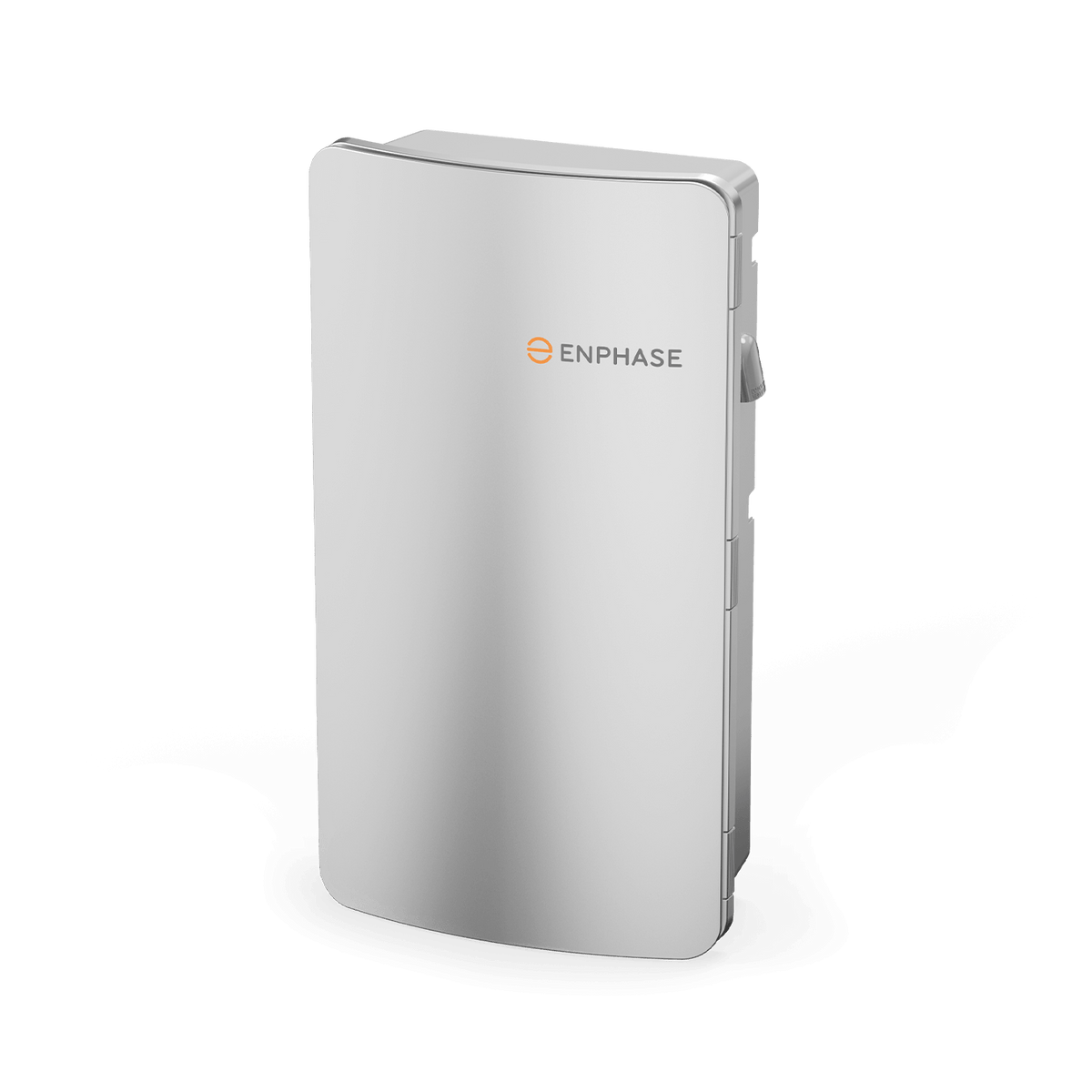

Enphase SC200G111C240US01 IQ System Controller 3G
Enphase SC200G111C240US01 IQ System Controller 3G
Regular price
$3,044.68
Regular price
Sale price
$3,044.68
Unit price
/
per
Couldn't load pickup availability
Enphase Enpower 240 Volt Smart Switch
The Enphase IQ System Controller 3G is a device that connects your home to grid power, IQ Batteries, Generator, and solar PV with Microinverters. It is recommended to use IQ System Controller 3G for all new installs using IQ8 Series Microinverters. The device provides microgrid interconnection device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure. It consolidates interconnection equipment into a single enclosure and streamlines grid-independent capabilities of PV, storage, and generator installations by providing a consistent, pre-wired solution for residential applications.
DIY customers and solar installers must complete the Enphase Installer & Design Storage Certification Courses through Enphase University to commission their system. This will provide you with the Enphase Installer Authorization needed to activate the system. These courses can be accessed at the online Enphase University.
You are approved to install Enphase Storage, if you have completed the tasks below:
Individual Storage Installer Certification
Individual Storage Design Certification
Optional: In-person training at one of Enphase’s regional centers
More information can be found at the following links:
Installer Authorization Program Guidelines for Enphase.
Installer Authorization Program Guidelines for Enphase Storage.
Electrical Specifications
Nominal voltage / range (L-L) 240 VAC
Nominal frequency / range 60 Hz / 56 - 63 Hz
Maximum continuous current rating: 160A
Maximum output overcurrent protection device: 200A
Maximum input overcurrent protection device: 200A
Maximum overcurrent protection device rating for generator circuit: 80A
Maximum overcurrent protection device rating for storage circuit: 80A
Breaker rating (pre-installed): 40A between L1 and Neutral; 40A between L2 and Neutral
Continuous rated power: 3600VA
Maximum continuous unbalance current: 30A @ 120V
Peak unbalanced current: 80A @ 120V for two seconds
Mechanical Data
Environmental rating: Outdoor, NEMA type 3R, polycarbonate construction
Dimensions (WxHxD): 19.7 in x 36 in x 9.7 in (50cm x 91.6cm x 24.6cm)
Weight: 87 lbs.
Cooling: Natural convection, heat shield
Altitude To 8200 feet
Warranty: 10 years
The Enphase IQ System Controller 3G is a device that connects your home to grid power, IQ Batteries, Generator, and solar PV with Microinverters. It is recommended to use IQ System Controller 3G for all new installs using IQ8 Series Microinverters. The device provides microgrid interconnection device (MID) functionality by automatically detecting and seamlessly transitioning the home energy system from grid power to backup power in the event of a grid failure. It consolidates interconnection equipment into a single enclosure and streamlines grid-independent capabilities of PV, storage, and generator installations by providing a consistent, pre-wired solution for residential applications.
DIY customers and solar installers must complete the Enphase Installer & Design Storage Certification Courses through Enphase University to commission their system. This will provide you with the Enphase Installer Authorization needed to activate the system. These courses can be accessed at the online Enphase University.
You are approved to install Enphase Storage, if you have completed the tasks below:
Individual Storage Installer Certification
Individual Storage Design Certification
Optional: In-person training at one of Enphase’s regional centers
More information can be found at the following links:
Installer Authorization Program Guidelines for Enphase.
Installer Authorization Program Guidelines for Enphase Storage.
Electrical Specifications
Nominal voltage / range (L-L) 240 VAC
Nominal frequency / range 60 Hz / 56 - 63 Hz
Maximum continuous current rating: 160A
Maximum output overcurrent protection device: 200A
Maximum input overcurrent protection device: 200A
Maximum overcurrent protection device rating for generator circuit: 80A
Maximum overcurrent protection device rating for storage circuit: 80A
Breaker rating (pre-installed): 40A between L1 and Neutral; 40A between L2 and Neutral
Continuous rated power: 3600VA
Maximum continuous unbalance current: 30A @ 120V
Peak unbalanced current: 80A @ 120V for two seconds
Mechanical Data
Environmental rating: Outdoor, NEMA type 3R, polycarbonate construction
Dimensions (WxHxD): 19.7 in x 36 in x 9.7 in (50cm x 91.6cm x 24.6cm)
Weight: 87 lbs.
Cooling: Natural convection, heat shield
Altitude To 8200 feet
Warranty: 10 years
