Enphase Energy

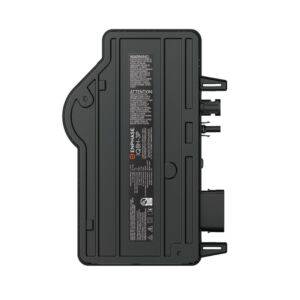

Enphase IQ8H-3P-72-E-US Micro Inverter 208 Volts AC With MC4 Connectors For 72 Cell Modules
Enphase IQ8H-3P-72-E-US Micro Inverter 208 Volts AC With MC4 Connectors For 72 Cell Modules
Regular price
$158.84
Regular price
Sale price
$158.84
Unit price
/
per
Couldn't load pickup availability
Enphase IQ8 Micro Inverter With MC4 DC Input Connectors
Enphase newest IQ8 Microinverters are the industry's first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-base microinverter is enphase's proprity application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. this chip is built in advance 55nm technology with high speed digital logic and has super-fast response times to changing loads and grid events. alleviation constraints on battery sizing for home energy systems.
Maximize your solar installation's potential with the cutting-edge Enphase IQ8H-3P-72-E-US Microinverter. Engineered for high-performance and reliability, this microinverter is designed to work with 72-cell PV modules, offering an efficient, smart, and safe solution for your solar energy needs. Its innovative technology ensures that you get maximum power output from your solar panels, enhancing your system's overall efficiency and productivity.
The Enphase IQ8H-3P-72-E-US stands out with its ability to provide continuous power even during partial shading or in the event of a panel failure, thanks to its independent MPPT (Maximum Power Point Tracking) for each panel. This feature guarantees that you achieve the highest possible energy production, regardless of environmental conditions.
Installation and maintenance have never been easier. The Enphase IQ8H microinverter series boasts a plug-and-play design, facilitating quick, easy installation, and future expansions of your solar power system. Additionally, its advanced monitoring capabilities allow for real-time tracking of your system's performance, ensuring you are always aware of your energy production and system health.
Max Continuous Output Power: 380 VA
Recommended PV module input power: 320-540 W
MPPT Range: 28.5V – 45V
Min/Max start voltage: 21V / 63V
97.7% CEC Efficiency
Easy to Install
Lightweight and compact with plug-n-play connectors
Faster installation
Power Line Communication (PLC) between components
High productive and reliable
Optimized for latest high powered 54-cell/108 half-cell, 60-cell/120 half-cell, 66-cell/132 half-cell and 72-cell/144 half-cell modules
More than a million cumulative hours of testing
Class II double-insulated enclosure
Produce power even when the grid is down
Grid-forming
Complies with the latest advance grid support
Remote automatic updates for latest grid requirements
Configurable to support a wide range of grid profiles
Meets CA Rule 21 (UL 1741-SA) requirements
Mechanical Data
Connector type: MC4 locking type
Dimensions (WxHxD): 265 mm x 200 mm x 35 mm (without bracket)
Dimensions (WxHxD): 10.4 in x 7.9 in x 1.4 in (without bracket)
Weight: 1.6 kg (3.5 lbs)
Cooling: Natural convection - No fans
Approved for wet locations: Yes
Enclosure: Class II double-insulated
Environmental category / UV exposure rating: NEMA Type 6 / outdoor
25 Year Warranty in the United States, U.S. territories, and Canada
