Enphase Energy

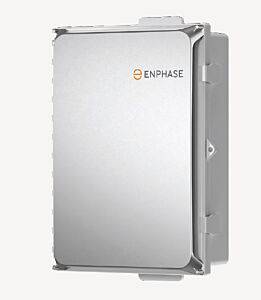

Enphase X-IQ-AM1-240-5 IQ Combiner 5 box with IQ Gateway
Enphase X-IQ-AM1-240-5 IQ Combiner 5 box with IQ Gateway
Regular price
$791.67
Regular price
Sale price
$791.67
Unit price
/
per
Couldn't load pickup availability
"Enphase X-IQ-AM1-240-5, AC Combiner Box with Enphase IQ Envoy
The IQ Combiner 5/5C is a device that combines interconnection equipment into a single enclosure, simplifying the installation process for residential applications. It is compatible with IQ System Controller 3/3G and IQ Battery 5P, and uses wired control communication. The device streamlines the installation of IQ Series Micro-inverters and IQ Gateway by providing a consistent, pre-wired solution. When used in conjunction with IQ Series Micro-inverters, IQ System Controller 3/3G, and IQ Battery 5P, it provides a complete grid-agnostic Enphase Energy System.
IQ Combiner 5 with IQ Gateway printed circuit board for integrated revenue grade PV production metering (ANSIC12.20 ±0.5%), consumption monitoring (± 2.5%) and IQ Battery monitoring (±2.5%). Includes a silver solar shield to deflect heat
DIY customers and solar installers must complete the Enphase Installer & Design Storage Certification Courses through Enphase University to commission their system. This will provide you with the Enphase Installer Authorization needed to activate the system. These courses can be accessed at the online Enphase University.
You are approved to install Enphase Storage, if you have completed the tasks below:
Individual Storage Installer Certification
Individual Storage Design Certification
Optional: In-person training at one of Enphase’s regional centers
More information can be found at the following links:
Installer Authorization Program Guidelines for Enphase.
Installer Authorization Program Guidelines for Enphase Storage.
Smart
IQ Gateway for communication and control
Includes Enphase Mobile Connect (CELLMODEM-M1-06-SP-05), only with IQ Combiner 5C
Supports flexible networking: Wi-Fi, Ethernet, or cellular
Provides production metering (revenue grade) and consumption monitoring
Easy to install
Mounts to one stud with centered brackets
Supports bottom, back, and side conduit entry
Supports up to four 2-pole branch circuits for 240 VAC plug-in breakers (not included)
80 A total PV branch circuits
Bluetooth based Wi-Fi provisioning for easy Wi-Fi setup
Reliable
Durable NRTL-Cerified NEMA type 3R enclosure
Five-year limited warranty
Two years labor reimbursement program coverage included for both the IQ Combiner SKUs
UL1741 listed
Features:
Accommodates up to 4-2P Eaton breakers
Voltage: 120/240 VAC
Weight: 16.5 lbs
Dimensions(WxHxD): 14.75" x 16.8" x 19.5"."
