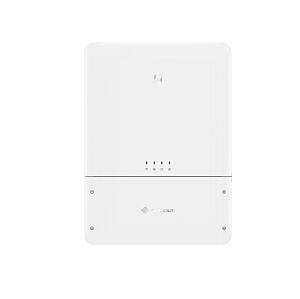

GoodWe GW9600-MS-US30 TIGO LAN Grid Tied Single Phase Inverter with TIGO Rapid Shutdown Transmitter

GoodWe GW9600-MS-US30 Grid Tied Inverter
We offer a wholesale program for qualifying installers and retailers. If you would like to apply, please see our partner program page for details.
The MS-US is a premium PV solution designed for North American homeowners, supporting a maximum 16 A input current per string and up to 160% DC oversizing. Engineered for long-term reliability and optimal energy production, this product ensures trouble-free operation. Its built-in optimization effectively manages complex rooftops and shaded areas, eliminating the need for traditional module-level optimizers, thereby reducing cost and system complexity.
GoodWe residential solutions provide homeowners with efficiency, reliability, and security. The MS-US meets stringent North American safety regulations, including next-generation AFCI and NEC 2017 rapid shutdown compliance. It also offers optional DC Type II Surge Protection with an event notification alarm, enhancing peace of mind for both installers and homeowners.
Features:
Built-in optimization eliminates the need for traditional optimizers
Integrated AFCI & Rapid Shutdown
160% DC input oversizing for maximum power production
Larger power classes offer installers more options
with Tigo Rapid Shutdown Transmitter
Technical Data:
Max. Input Power (W): 15360
Max. Input Voltage(V): 600
MPPT Voltage Range at Nominal Power (V) (at 240V): 210 ~ 500
MPPT Voltage Range at Nominal Power (V) (at 208V): 182 ~ 500
Nominal Input Voltage (V) (at 240V)/ (at 208V): 380 / 330
Max. Input Current per MPPT(A): 16
Max. Short Circuit Current per MPPT (A): 23.4
Number MPP trackers/Number of Strings per MPPT: 3/1
Nominal Output Power (W) (at 240V)/(at 208V): 9600 / 8320
Nominal Output Apparent Power (VA) (at 240V)/(at 208V): 9600 / 8320
Nominal Out Voltage (V): 240 / 208
Nominal AC Grid Frequency (Hz): 60
Max. Output Current (A): 40.0
Max. Efficiency: 97.8%
Weight (lbs): 55.1(23.0 kg)
Dimension(W x H x D in): 19.2 × 26.4 × 7.8
