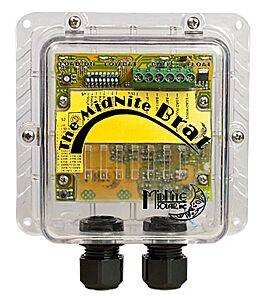

"MidNite Solar Brat PWM Charge Controller for 12/24 Volts DC The MidNite Solar Brat charge controller is one of the best and most versatile controllers in its class. It works great for RV, boats, communication systems, water pumping, lighting and many other types of applications. It's rated for 30 amps output at either 12 or 24 volts DC and uses a three-stage charging algorithm of bulk, absorb, and float. It also has an selectable automatic equalization setting that will equalize your batteries for two hours every month. You may also choose to start the equalization manually. Note: Equalization is disabled for sealed types of batteries. The Brat can also be used as a 10 amp load controller. If used for controlling loads, the maximum charging current is reduced to 20 amps. The Brat supports four different built-in charging profiles: AGM, GEL, and two Flooded. The enclosure is rated NEMA 3R/IP55 for outdoor locations. This means it's weather proof and can also be used safely in harsh marine environments. It automatically sets temperature compensation when charging by using a built-in temperature sensor. No external battery temperature sensor is required. MidNite Solar Brat Specifications: Maximum PV Voltage Input: 60 volts DC Maximum Output: 30 amps DC | 20 amps DC when used as a load controller Low voltage disconnect PWM - Pulse Width Modulation charging algorithm Status Display: Four LEDs for Bulk, Float, Load On, and Low Battery/LVD\ Load Circuit Rating: 10 amps max. Operating Temperature: -40°C to 60°C Weight: 1 pound Dimensions: 6.75"L x 6"W x 2.375"D 2 year warranty"
