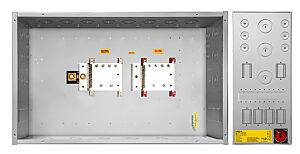

MidNite Solar MNBCB 2000/200 2000 Amp Battery Combiner Box
MidNite Solar MNBCB 2000/200 2000 Amp Battery Combiner Box
Regular price
$1,175.07
Regular price
Sale price
$1,175.07
Unit price
/
per
Couldn't load pickup availability
"MidNite Solar 2000 Amp Battery Combiner Box
Includes a 2000 Amp positive and negative bus bar with 3/8 inch studs. Cables can be double lugged and the copper bus bar can be drilled for additional mounting locations, We recommend you use 3/8 inch stainless bolts if you drill holes to attach more ring terminals. Includes a 2000 Amp 200mV shunt with 1/2 inch bolt for customer connection (SMA uses 50mv shunt). It has locations for up to 12 1” MNEDC Breakers, MNBREAKER ADAPTER can be used to adapt down to accommodate ¾” breakers. Powder coated steel.
Useful for dual Radian inverters as well as for combining multiple strings of batteries.
Max. AC Voltage - 277VAC
Max. DC Voltage - 300VDC
Max. Wire Size - 4/0
Number of Spaces - 12
Environment Rating - Type 1 environmental rating (indoor)
Product Dimensions: 35-1/2" L x 22" W x 9-3/4" D
Product Weight: 50lbs
Warranty - 5yrs
Made in USA"
Includes a 2000 Amp positive and negative bus bar with 3/8 inch studs. Cables can be double lugged and the copper bus bar can be drilled for additional mounting locations, We recommend you use 3/8 inch stainless bolts if you drill holes to attach more ring terminals. Includes a 2000 Amp 200mV shunt with 1/2 inch bolt for customer connection (SMA uses 50mv shunt). It has locations for up to 12 1” MNEDC Breakers, MNBREAKER ADAPTER can be used to adapt down to accommodate ¾” breakers. Powder coated steel.
Useful for dual Radian inverters as well as for combining multiple strings of batteries.
Max. AC Voltage - 277VAC
Max. DC Voltage - 300VDC
Max. Wire Size - 4/0
Number of Spaces - 12
Environment Rating - Type 1 environmental rating (indoor)
Product Dimensions: 35-1/2" L x 22" W x 9-3/4" D
Product Weight: 50lbs
Warranty - 5yrs
Made in USA"
