MidNite Solar
Midnite Solar MNE250XWP-SINGLE 250 Amp E-Panel for Schneider Electric XW+ Inverter
Midnite Solar MNE250XWP-SINGLE 250 Amp E-Panel for Schneider Electric XW+ Inverter
Regular price
$993.92
Regular price
Sale price
$993.92
Unit price
/
per
Couldn't load pickup availability

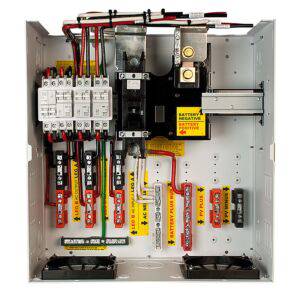

White Steel with 250a/125 VDC Inverter Breaker for Single XW+ Inverter
Note: Inverter and charge controller are not included with the E-Panel.
The MidNite Solar E-Panel simplifies the installation process for your Xantrex inverter system. It comes with all the properly sized over-current devices like circuit breakers and DC disconnects as required by the national electric code. All MidNite E-Panels are ETL listed to UL and CSA standards and can be used in residential and small commercial installations. The design of the E-Panel allows the inverter to mount directly above the E-Panel enclosure. This saves you wall space, time, and some money (no additional conduits or enclosures are necessary for connecting the inverter to the E-Panel). The panel comes factory pre-wired and all field wiring connection points are clearly labeled (solar, battery, generator, etc.). The XW E-Panel comes standard with a reversible door hinge and can be switched in the field. The XW E-Panels are only available in steel. If you are interested in shortening install time, saving money and being NEC code compliant, then you may want to consider a MidNite Solar E-Panel. If you have any questions about choosing the proper E-Panel, feel free to email us or call for more information.
The XW+ inverter mounts to the top of the E-Panel and the XW MPPT 60 amp charge controller mounts to either side. If you plan to use an Outback or MidNite Solar charge controller, those will require a mounting bracket. A right side bracket is included with the unit. If you need a left side mounting bracket, that is an additional $15.
Specifications and Features:
Small size compared to existing disconnect and over-current solutions
Pre-wired to save time, money and reduce complexity of installation
Easily expandable to accommodate additional inverters
Space for 7 din rail circuit breakers
Space for 12 panel mount circuit breakers
500 amp 50 millivolt shunt for battery monitoring systems
Pre-wired 240 volts AC inverter bypass switch
AC-1 input disconnect
AC-2 input disconnect
Bus bars for battery positive, battery negative, ground, PV+, PV-, AC hot in, AC hot out and Neutral
Mounting hardware included for the charge controller
Mounting brackets for hanging E-Panel on wall
Comes with heavy duty 250 amp AC distribution block
Includes bracket for mounting the charge controller
Accommodates MidNite Solar or Outback GFP circuit breaker
DC inverter breaker included
Internal inverter cables included
5 Year Manufacturer's Warranty
Note: The Schneider Electric DC-GFP's will not fit in the E-Panel. The MidNite Solar single circuit DC-GFP's are designed for a single PV array. Two MidNite DC-GFP's may be used to accommodate two arrays although the dual OutBack would work for dual arrays and dual controllers, cost less and takes up less room.
Note: Inverter and charge controller are not included with the E-Panel.
The MidNite Solar E-Panel simplifies the installation process for your Xantrex inverter system. It comes with all the properly sized over-current devices like circuit breakers and DC disconnects as required by the national electric code. All MidNite E-Panels are ETL listed to UL and CSA standards and can be used in residential and small commercial installations. The design of the E-Panel allows the inverter to mount directly above the E-Panel enclosure. This saves you wall space, time, and some money (no additional conduits or enclosures are necessary for connecting the inverter to the E-Panel). The panel comes factory pre-wired and all field wiring connection points are clearly labeled (solar, battery, generator, etc.). The XW E-Panel comes standard with a reversible door hinge and can be switched in the field. The XW E-Panels are only available in steel. If you are interested in shortening install time, saving money and being NEC code compliant, then you may want to consider a MidNite Solar E-Panel. If you have any questions about choosing the proper E-Panel, feel free to email us or call for more information.
The XW+ inverter mounts to the top of the E-Panel and the XW MPPT 60 amp charge controller mounts to either side. If you plan to use an Outback or MidNite Solar charge controller, those will require a mounting bracket. A right side bracket is included with the unit. If you need a left side mounting bracket, that is an additional $15.
Specifications and Features:
Small size compared to existing disconnect and over-current solutions
Pre-wired to save time, money and reduce complexity of installation
Easily expandable to accommodate additional inverters
Space for 7 din rail circuit breakers
Space for 12 panel mount circuit breakers
500 amp 50 millivolt shunt for battery monitoring systems
Pre-wired 240 volts AC inverter bypass switch
AC-1 input disconnect
AC-2 input disconnect
Bus bars for battery positive, battery negative, ground, PV+, PV-, AC hot in, AC hot out and Neutral
Mounting hardware included for the charge controller
Mounting brackets for hanging E-Panel on wall
Comes with heavy duty 250 amp AC distribution block
Includes bracket for mounting the charge controller
Accommodates MidNite Solar or Outback GFP circuit breaker
DC inverter breaker included
Internal inverter cables included
5 Year Manufacturer's Warranty
Note: The Schneider Electric DC-GFP's will not fit in the E-Panel. The MidNite Solar single circuit DC-GFP's are designed for a single PV array. Two MidNite DC-GFP's may be used to accommodate two arrays although the dual OutBack would work for dual arrays and dual controllers, cost less and takes up less room.
