MidNite Solar MNPV16HV NEMA 4X Disconnecting Combiner
MidNite Solar MNPV16HV NEMA 4X Disconnecting Combiner
Regular price
$1,673.57
Regular price
Sale price
$1,673.57
Unit price
/
per
Couldn't load pickup availability
"MidNite Solar MNPV16HV Disco Combiner

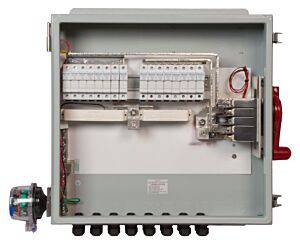

NEMA 4X aluminum enclosure (no rust, won't turn to dust). Sixteen strings combined for up to 230 Amps single pole disconnect). 8 + 8 strings, separate PV+ and PV- for use with 2 inverters (2 pole 115A disconnect). 8 strings plus, 8 strings minus for use with non-isolated inverters (2 pole 115A 600VDC disconnect). See through deadfront, color coded busbar guards, fuseholders, 15 amp fuses, strain relief connectors, hole plugs and MNSPD600 surge protection device included. Works with the Birdhouse emergency disconnect switch and meets 2011 NEC.
Dimensions: 21.6"L x 19.9"W x 5.8"D
Weight: 27 pounds
5 year warranty"
NEMA 4X aluminum enclosure (no rust, won't turn to dust). Sixteen strings combined for up to 230 Amps single pole disconnect). 8 + 8 strings, separate PV+ and PV- for use with 2 inverters (2 pole 115A disconnect). 8 strings plus, 8 strings minus for use with non-isolated inverters (2 pole 115A 600VDC disconnect). See through deadfront, color coded busbar guards, fuseholders, 15 amp fuses, strain relief connectors, hole plugs and MNSPD600 surge protection device included. Works with the Birdhouse emergency disconnect switch and meets 2011 NEC.
Dimensions: 21.6"L x 19.9"W x 5.8"D
Weight: 27 pounds
5 year warranty"
