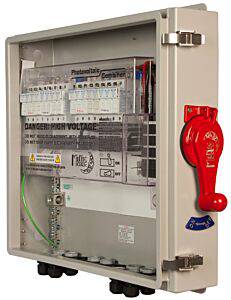

MidNite Solar MNPV16HV NEMA 4X Disconnecting Combiner for Dual Channel Transformerless Inverters

"MidNite Solar MNPV16HV NEMA 4X Disconnecting Combiner for Dual Channel Transformerless Inverters
NEMA 4X aluminum enclosure (no rust, won't turn to dust). Eight strings into the combiner with two separate 60 amp strings out. Specifically designed for the new dual channel MPPT on the transformer-less inverters. This configuration will break the Positive and Negative of 2 separate 600vdc strings.
The difference between the regular Disco combiner and the DLTL version is that the MNPV16HV-Disco-4X is made for a single 16 string inverter, two 8-string inverters, or one 8-string transformerless where as the DLTL is set up for eight strings in and two strings out for Dual MPPT on transformerless inverters.
Features and Specifications:
Rapid Shutdown System compliant
Birdhouse compatible
Type 4X aluminum enclosure (No Rust)
Number of Fuse Holders (MNTS) included - 16
Fuses included
Current Rating - 120A
Max. Output Wire Size - 2/0
Output Circuits - 2
90 degree C connections
1/2 strain reliefs (MNSR-1000) included
Meets 2014 NEC 690.12
See through dead front and color coded bus bar guards
#6 AWG internal wiring
Warranty - 5 yrs.
Listed by ETL for US & Canada
Made in the USA
Dimensions: 21.6"L x 19.9"W x 5.8"D (including handle)
Weight: 25 pounds
5 year warranty"
