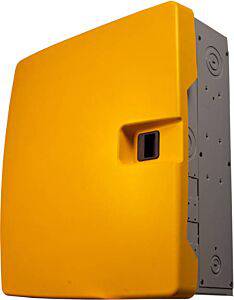

MidNite Solar Off-Grid Quad Master E-Panel for SMA Inverter 240 Volt System

Off-Grid Quad Master E-Panel for SMA Sunny Island
NOTE: A back plate (MNESMA-Short BP or MNESMA-Tall-BP) is recommended for the proper wiring alignment of the Sunny Island. NOTE: The E-Panel does NOT come with the Classic charge controller. Master E-Panel for a quad inverter off-grid 240VAC Sunny Island inverter system. This setup requires three slave E-Panels and a total of four inverters. MidNite Solar E-Panels simplify the installation process for your inverter system. The MNE250SMA-Quad-Mstr quad master E-Panel works with three of the MNE250SMA-Slave E-Panels to create a 120/240 VAC off-grid or AC coupled system. The MNE250SMA-Quad Mstr master includes the Quad input/output bypass system. This E-Panel can be used in conjunction with a Sunny Island inverter as part of a quad off-grid, battery backup or AC coupled system. Terminals are provided for hookup to leg 1 + 2 in the slave E-Panels. Comes with 250A battery disconnect breaker and inverter cables. Pre-wired with AC input and output wiring for leg 1 (master) inverter. (Three slaves are also required for a quad system). If you plan to use this setup for an AC coupled system, you will need a total of five inverters: Four Sunny Island models and one grid-tie model. This is the standard model which does NOT come pre-wired for the Classic solar charge controller. You may select Classic wiring options from the drop down menu above. It can be pre-wired for one or two Classic solar charge controllers but it does NOT come with the controller. The Classic controllers are sold separately. 5 year warranty
