S-5! PVKIT 2.0 MidGrab Solar Rooftop Solutions

S-5! S-5-PV Kit 2.0 Mid Solar Rooftop Solutions
Note: The S-5-S Mini must be purchase separate.

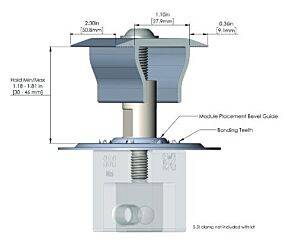

S-5! now introduces a new and improved PVKIT, boasting lower installation time and cost for PV flush-mounting. The kit comes preassembled for easier and more efficient installation. A single tool drives the top bolt, eliminating several installation steps. The PVKIT 2.0 features more aggressive bonding teeth for better grounding. Fewer lugs/ground wires required.
PVKIT fits a wide array of module thicknesses. Use with S-5! mini clamps enables fitting to all standing seam metal roof profiles of any material. When paired with other S-5! products, the PVKIT 2.0 also works on all trapezoidal ribbed and corrugated metal roofs.
Features:
Preassembled solar rooftop solution components to save time and money
Versatile: same kit for most module thicknesses
Only one tool needed for installation
Installs with module, reducing lay-out time
All non-corrosive aluminum and stainless steel
Single-piece EdgeGrab installs with ease
Added slots for wire tie-off
Low profile hardware provides flush, clean finish
Available in black by special order
1″ gap between modules, allowing load reduction per ASCE-7
UL 2703 Listed
