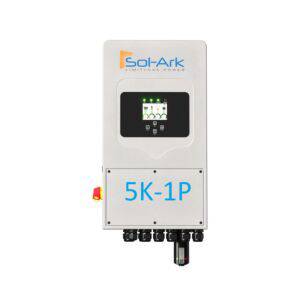

Sol-Ark 5K-1P Pre-wired Hybrid Inverter System
Sol-Ark 5K-1P Pre-wired Hybrid Inverter System
Couldn't load pickup availability
Sol-Ark 5K Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or battery backup solar system, while being able to manages power to and from Solar, Battery, Grid, Loads, and Generator.
SA-5K-1P-N Features:
* Simple to install with touchscreen interface
* Grid Tied Mode: Sell your power to reduce electric bill
* Meter Zero Mode: Zero your electric bill without a smart meter
* Time of Use: Use solar and batteries to minimize grid power usage
* Programmable Smart Load Mode
* DC and AC Coupling
* Works with a wide range of battery chemistries - Lead acid to Lithium
SA-5K-1P-N Specifications:
* AC Voltage: 120V single phase
* AC frequency: 60/50 Hz
* Max allowed PV power: 10,400 Watts
* MPPT Voltage range: 125-425V
* PV input Voltage: 370V (100~500V)
* PV input current: 20A + 20A
* Rated AC output: 4,800 Watt
* Inverter efficiency: 97.6%
* Weight: 51 lbs
* Dimensions (H x W x D): 22.8" x 13.0" x 9.1"
