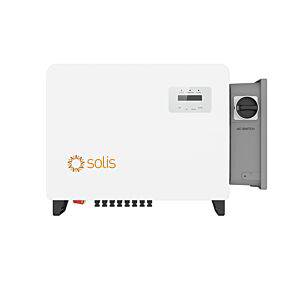

Solis S6-GC30K-LV-US 30K Three Phase Series String Inverter
Solis S6-GC30K-LV-US 30K Three Phase Series String Inverter
Regular price
$4,251.25
Regular price
Sale price
$4,251.25
Unit price
/
per
Couldn't load pickup availability
Solis S6-GC30K-LV-US Three Phase Inverter
This Inverter can only ship via freight truck. If you have any questions about shipping methods, please email us or call us at 928 437-1646.
We offer a wholesale program for qualifying installers and retailers. If you would like to apply, please see our partner program page for details.
The Solis S6-GC30K-LV-US inverter products are designed for three-phase commercial rooftop PV projects with a grid voltage of 208VAC. The inverter’s PV string current can reach up to 20A, making it compatible with almost all types of PV modules available in the market. The product has a very wide full power operating voltage range, which can provide more benefits. The online O&M tools are simple and easy to use, making O&M more intelligent and convenient. The DC and AC connect ports have been optimized to reduce the cost of system cable. Additionally, the product has Type 4X and C5 corrosion protection grades, which make it suitable for installation in the harshest environmental conditions for stable operation.
Features:
String current up to 20A
1.5 DC/AC ratio
Type 4X, C5 Anti-Corrosion Level
Intelligent redundant fan-cooling
Max. efficiency 97.7% (CEC efficiency 97.0%)
Wide voltage range and low startup voltage
Supports RS485, Ethernet, WiFi, Cellular
AFCI protection, proactively reduces fire risk
Intelligent string monitoring, smart I-V curve scan
Integrated module level rapid shutdown transmitter
3 MPPT design, supports multiple orientation system design
High quality components from globally recognized suppliers
Supports high power modules for lower installation costs
Scan to register on SolisCloud, supports remote upgrade and control
Night time PID recovery function, increases overall system yield (optional)
Equipped with external power control interface, supporting zero output power control
Technical Specifications:
Max. input voltage: 1000V
Start-up voltage: 195V
MPPT number: 3
Max. input strings number: 6
Rated output power: 30 kW
Rated grid frequency: 60 Hz
Max. output current: 91.6 A
Max. efficiency: 97.7%
Dimensions: 30.9in x 21.6in x 12.6 in
Weight(inverter/wiring box): 103.8 lbs (47.1 kgs)
This Inverter can only ship via freight truck. If you have any questions about shipping methods, please email us or call us at 928 437-1646.
We offer a wholesale program for qualifying installers and retailers. If you would like to apply, please see our partner program page for details.
The Solis S6-GC30K-LV-US inverter products are designed for three-phase commercial rooftop PV projects with a grid voltage of 208VAC. The inverter’s PV string current can reach up to 20A, making it compatible with almost all types of PV modules available in the market. The product has a very wide full power operating voltage range, which can provide more benefits. The online O&M tools are simple and easy to use, making O&M more intelligent and convenient. The DC and AC connect ports have been optimized to reduce the cost of system cable. Additionally, the product has Type 4X and C5 corrosion protection grades, which make it suitable for installation in the harshest environmental conditions for stable operation.
Features:
String current up to 20A
1.5 DC/AC ratio
Type 4X, C5 Anti-Corrosion Level
Intelligent redundant fan-cooling
Max. efficiency 97.7% (CEC efficiency 97.0%)
Wide voltage range and low startup voltage
Supports RS485, Ethernet, WiFi, Cellular
AFCI protection, proactively reduces fire risk
Intelligent string monitoring, smart I-V curve scan
Integrated module level rapid shutdown transmitter
3 MPPT design, supports multiple orientation system design
High quality components from globally recognized suppliers
Supports high power modules for lower installation costs
Scan to register on SolisCloud, supports remote upgrade and control
Night time PID recovery function, increases overall system yield (optional)
Equipped with external power control interface, supporting zero output power control
Technical Specifications:
Max. input voltage: 1000V
Start-up voltage: 195V
MPPT number: 3
Max. input strings number: 6
Rated output power: 30 kW
Rated grid frequency: 60 Hz
Max. output current: 91.6 A
Max. efficiency: 97.7%
Dimensions: 30.9in x 21.6in x 12.6 in
Weight(inverter/wiring box): 103.8 lbs (47.1 kgs)
