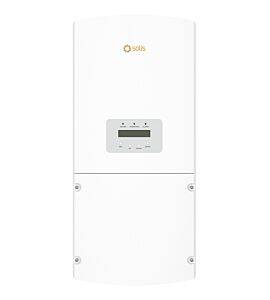

Solis Solar Inverter Solis-1P7.6K-4G-US-RSS Single Phase Triple MPPT Residential Inverter

Solis-1P7.6K-4G-US-RSS Single Phase Inverter
We offer a wholesale program for qualifying installers and retailers. If you would like to apply, please see our partner program page for details.
Solis 6-10KW US plus version single phase string inverters have up to 4 MPPTs which are perfect for residential rooftop systems with different roof orientations. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.
Leading Features:
String current up to 14A
Support module level monitoring
Industry-leading 3 and 4 MPPT designs
Max. efficiency 97.7% (CEC efficiency 97.1%)
CA Rule 21 compliant and UL 1741 SB Certified
Sunspec protocol with option cellular and WiFi
AFCI protection, proactively reduces fire risk
Integrated module level rapid shutdown transmitter
10 years standard warranty with extension options
Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
Technical Specifications:
Max. input voltage: 600V
Start-up voltage: 120V
MPPT number: 3
Max. input strings number: 3
Rated output power: 7.6 kW
Rated grid frequency: 60 Hz
Max. output current for 208V grid: 36.5.3 A
Max. output current for 240V grid: 31.7 A
Max. efficiency: 97.8%
Dimensions: 13.1in x 28.8in x 9.8 in
Weight: 45.2 lbs (20.5 kgs)
