Victron Electrical Panel VEP 5kVA 120/240 NA Primary 48Vdc

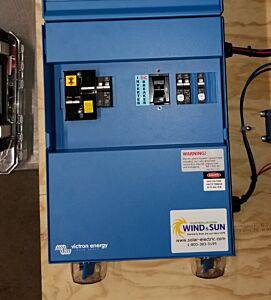

The VE Panel (VEP) is designed for the 3kVA and 5kVA MultiPlus and Quattro inverter/chargers
Features:
Internally pre-wired enclosure
A built-in AC bypass switch
Battery to inverter/charger DC disconnect breaker (250 Amps)
Inverter AC input overcurrent protection breakers
DIN mount AC and DC breakers
500A/50mV DC shunt installed
Enclosure and components are UL/CSA certified and designated for indoor use
Configurations available for both single 120 and 230 VAC, 120/240 VAC and 3-Phase systems
DC negative, positive and ground busbars for DC loads and PV arrays included
Mounting provided for DIN rail DC load/disconnect breakers
Integrates directly with Victron Energy’s 3,000 and 5,000 Multi-Plus and Quattro inverter/chargers
Knockouts for inverter/charger and battery cables, PV in/out, DC panel mount breakers
Specifications:
Weight: 16.4
The VE Panel (VEP) is designed for the 3kVA and 5kVA MultiPlus and Quattro inverter/chargers
Features:
Internally pre-wired enclosure
A built-in AC bypass switch
Battery to inverter/charger DC disconnect breaker (250 Amps)
Inverter AC input overcurrent protection breakers
DIN mount AC and DC breakers
500A/50mV DC shunt installed
Enclosure and components are UL/CSA certified and designated for indoor use
Configurations available for both single 120 and 230 VAC, 120/240 VAC and 3-Phase systems
DC negative, positive and ground busbars for DC loads and PV arrays included
Mounting provided for DIN rail DC load/disconnect breakers
Integrates directly with Victron Energy’s 3,000 and 5,000 Multi-Plus and Quattro inverter/chargers
Knockouts for inverter/charger and battery cables, PV in/out, DC panel mount breakers
Specifications:
Weight: 16.4
