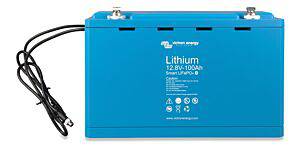

Victron Energy LiFePO4 Battery 12.8V/100Ah
Victron Energy LiFePO4 Battery 12.8V/100Ah
Regular price
$754.80
Regular price
Sale price
$754.80
Unit price
/
per
Couldn't load pickup availability
Victron Energy LiFePO4 12.8V/100Ah Battery
Note: A basic system for this battary to operate would have a least a BMS, a charge relay and load relay of some kind, but this will depend on what other equipment is in the system.
CYCLE LIFE - CAPACITY AT DIFFERENT CYCLES AT 100% DoD
2500 Cycles 80 3000 Cycles 70 5000 Cycles 50
Specifications:
Amp Hours: 100AH
Voltage: 12.8V Nominal
Peak Amps: 200 amps
Life Expectancy: 2500-5000 Cycles
Weight (Battery Only): 33lbs. / 15kg
Power connection: M8
Max Continuous Charge: 1C=200A
Max Continuous Discharge: 1C=200A
Operating Temperature: -4 to + 122 F
Storage temperature: -49 to +158 F
Charge Voltage: CC/CV 14.2V / Float 13.5V
Cell Type: LiFeP04
Note: A basic system for this battary to operate would have a least a BMS, a charge relay and load relay of some kind, but this will depend on what other equipment is in the system.
CYCLE LIFE - CAPACITY AT DIFFERENT CYCLES AT 100% DoD
2500 Cycles 80 3000 Cycles 70 5000 Cycles 50
Specifications:
Amp Hours: 100AH
Voltage: 12.8V Nominal
Peak Amps: 200 amps
Life Expectancy: 2500-5000 Cycles
Weight (Battery Only): 33lbs. / 15kg
Power connection: M8
Max Continuous Charge: 1C=200A
Max Continuous Discharge: 1C=200A
Operating Temperature: -4 to + 122 F
Storage temperature: -49 to +158 F
Charge Voltage: CC/CV 14.2V / Float 13.5V
Cell Type: LiFeP04
