Victron Energy

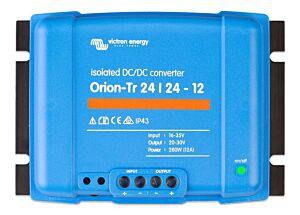

Victron Energy Orion-Tr 24/24-12A DC-DC Converter
Victron Energy Orion-Tr 24/24-12A DC-DC Converter
Regular price
$113.90
Regular price
Sale price
$113.90
Unit price
/
per
Couldn't load pickup availability
"Victron Energy 24/24-12A Orion-Tr DC-DC Converter
The Remote on-off eliminates the need for a hight furrent switch in the input wiring. The remote on-off can be operated with a low power switch or by for examlpe the engine run/stop switch.
Adjustable output voltage: can also be used as a battery charger.
All models are short circuit proof and can be paralleled to increase optout current. An unlimited number or units can be connected in paralled.
IP43 protection when installed with the screw terminals orients downwards.
Input fuse on 12V and 24V input models only.
Features:
Input voltage range: 16-35v
Output Voltage adjust range: 20-30V
Continuous output current at nominal output voltage: 12 Amps
Max output current at nominal output voltage: 15 Amps
Efficiency: 89%
Dimensions(h x w x d): 5.1" x 7.3" x 2.8"
5 Year Warranty"
The Remote on-off eliminates the need for a hight furrent switch in the input wiring. The remote on-off can be operated with a low power switch or by for examlpe the engine run/stop switch.
Adjustable output voltage: can also be used as a battery charger.
All models are short circuit proof and can be paralleled to increase optout current. An unlimited number or units can be connected in paralled.
IP43 protection when installed with the screw terminals orients downwards.
Input fuse on 12V and 24V input models only.
Features:
Input voltage range: 16-35v
Output Voltage adjust range: 20-30V
Continuous output current at nominal output voltage: 12 Amps
Max output current at nominal output voltage: 15 Amps
Efficiency: 89%
Dimensions(h x w x d): 5.1" x 7.3" x 2.8"
5 Year Warranty"
