Victron Energy Orion-Tr 48/12-9A DC-DC Isolated Converter
Victron Energy Orion-Tr 48/12-9A DC-DC Isolated Converter
Couldn't load pickup availability

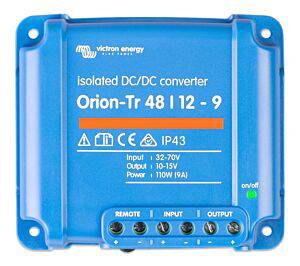

Victron Orion-Tr 48/12 DC-DC converter is design with a remote on-off to eliminate the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch.
Adjustable output voltage: can also be used as a battery charger, for example to charge a 12 Volt starter or accessory battery in a otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
Features:
Input voltage range: 32-70V
Output Voltage adjust range: 10-15V
Continuous output current at nominal output voltage: 9 Amps
Max output current at nominal output voltage: 12.5 Amps
Efficiency: 87%
Dimensions(h x w x d): 4.0" x 4.5" x 1.9"
5 Year Warranty"
