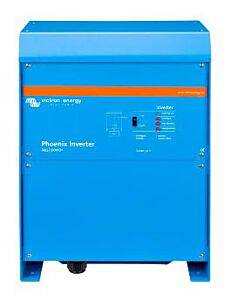

Victron Energy Phoenix 24/3000 120V Inverter
Victron Energy Phoenix 24/3000 120V Inverter
Regular price
$1,154.30
Regular price
Sale price
$1,154.30
Unit price
/
per
Couldn't load pickup availability
"Victron Energy Phoenix 24/3000 120V Inverter
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Parallel and 3-phase operation capability. Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
Feature & Specifications:
Output AC voltage: 120VAC +-3%
Output frequency: 60Hz
Continuous output power at 25°C: 3000VA
Peak power: 6000W
Max efficiency: 93%
Zero load power: 20 Watts;
Dimensions(h x w x d): 14.3" x 10.2" x 8.6"
Weight: 38 lbs
Warranty: 5 years
The difference here between an inverter’s specified VA rating and Watt rating is referencing power factor and crest ratio both of which can affect the apparent power vs the actual power and peak wave form vs RMS on the inverter. Most inverter manufactures derate their specified inverter watt output to account for loads with poor power factor and wave distortion."
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Parallel and 3-phase operation capability. Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
Feature & Specifications:
Output AC voltage: 120VAC +-3%
Output frequency: 60Hz
Continuous output power at 25°C: 3000VA
Peak power: 6000W
Max efficiency: 93%
Zero load power: 20 Watts;
Dimensions(h x w x d): 14.3" x 10.2" x 8.6"
Weight: 38 lbs
Warranty: 5 years
The difference here between an inverter’s specified VA rating and Watt rating is referencing power factor and crest ratio both of which can affect the apparent power vs the actual power and peak wave form vs RMS on the inverter. Most inverter manufactures derate their specified inverter watt output to account for loads with poor power factor and wave distortion."
