Victron Energy

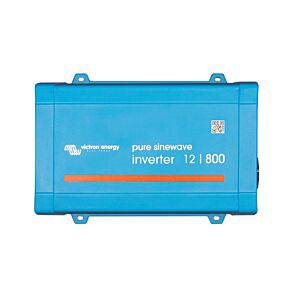

Victron Energy Phoenix 800W 120V NEMA 5-15R Inverter with VE.Direct
Victron Energy Phoenix 800W 120V NEMA 5-15R Inverter with VE.Direct
Regular price
$204.85
Regular price
Sale price
$204.85
Unit price
/
per
Couldn't load pickup availability
"Victron Energy Phoenix 800W 120V NEMA 5-15R Inverter
NOTE: This inverter is a stand-alone unit. It can NOT be stacked with additional inverters. The only Victron inverters that can be stacked are the VE.BUS models.
Developed for professional duty, the Phoenix inverters range is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise any performance. Resulting in a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
This inverters allow you to power domestic equipment - requiring 120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
The Phoenix inverter with VE.Direct allow for communication from a computer with the the VE.Direct cable or a smartphone and tablet using the VE.Direct Bluetooth Smart dongle. This gives you the able to fully configure the inverter to your needs. Proven reliability with the full bridge with toroidal transformer topology to provide reliable power over many years.
Feature & Specifications:
Output AC voltage: 120VAC
Output frequency: 60Hz
Continuous output power at 25°C: 800VA
Peak power output: 1500W
Max efficiency: 90%
Zero load power: 6.5 Watts
Output Socket: NEMA 5-15R
Dimensions(h x w x d): 4.13" x 9.05" x 12.79"
Weight: 12.0 lbs
Warranty: 5 years
The difference here between an inverter’s specified VA rating and Watt rating is referencing power factor and crest ratio both of which can affect the apparent power vs the actual power and peak wave form vs RMS on the inverter. Most inverter manufactures derate their specified inverter watt output to account for loads with poor power factor and wave distortion."
NOTE: This inverter is a stand-alone unit. It can NOT be stacked with additional inverters. The only Victron inverters that can be stacked are the VE.BUS models.
Developed for professional duty, the Phoenix inverters range is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise any performance. Resulting in a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
This inverters allow you to power domestic equipment - requiring 120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
The Phoenix inverter with VE.Direct allow for communication from a computer with the the VE.Direct cable or a smartphone and tablet using the VE.Direct Bluetooth Smart dongle. This gives you the able to fully configure the inverter to your needs. Proven reliability with the full bridge with toroidal transformer topology to provide reliable power over many years.
Feature & Specifications:
Output AC voltage: 120VAC
Output frequency: 60Hz
Continuous output power at 25°C: 800VA
Peak power output: 1500W
Max efficiency: 90%
Zero load power: 6.5 Watts
Output Socket: NEMA 5-15R
Dimensions(h x w x d): 4.13" x 9.05" x 12.79"
Weight: 12.0 lbs
Warranty: 5 years
The difference here between an inverter’s specified VA rating and Watt rating is referencing power factor and crest ratio both of which can affect the apparent power vs the actual power and peak wave form vs RMS on the inverter. Most inverter manufactures derate their specified inverter watt output to account for loads with poor power factor and wave distortion."
