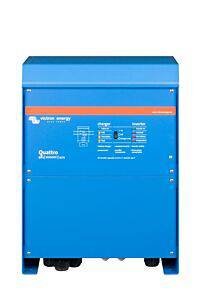

Victron Energy Quattro 10,000 Watt 48 Volt Inverter & 140 Amp Battery Charger 230 VAC
Victron Energy Quattro 10,000 Watt 48 Volt Inverter & 140 Amp Battery Charger 230 VAC
Regular price
$2,606.95
Regular price
Sale price
$2,606.95
Unit price
/
per
Couldn't load pickup availability
"Victron Energy 10,000 Watt 48VDC Inverter & charger
This item ships by truck freight. For the most accurate shipping rates, please email us for a shipping quote or call us at (928) 563-5750.
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC input and automatically connect to the active source. Its many features include two sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such a three or split phase operation and parallel operation.
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro.
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery
Features and Specifications:
Multifunctional, with intelligent power management
Two AC inputs & Two AC outputs
Three phase capability
Split phase options
PowerControl - Dealing with limited generator, shore side or grid power
Unique PowerAssist - Boosting the capacity of shore or generator power
Input Voltage range: 38 to 66 Volt DC
Output voltage: 230 Volts AC +/-2% @ 50 Hz
Continuous output power: 10,000 Volt-Amps @ 77oF
Zero load power: 60 Watts; 15 Watts in search mode
Charge current (house battery): 140 Amps
Dimensions: 18.5" x 13.78" x 11.02" inches
Weight: 90.38 pounds
5 year warranty
The difference here between an inverter’s specified VA rating and Watt rating is referencing power factor and crest ratio both of which can affect the apparent power vs the actual power and peak wave form vs RMS on the inverter. Most inverter manufactures derate their specified inverter watt output to account for loads with poor power factor and wave distortion."
This item ships by truck freight. For the most accurate shipping rates, please email us for a shipping quote or call us at (928) 563-5750.
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC input and automatically connect to the active source. Its many features include two sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such a three or split phase operation and parallel operation.
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro.
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery
Features and Specifications:
Multifunctional, with intelligent power management
Two AC inputs & Two AC outputs
Three phase capability
Split phase options
PowerControl - Dealing with limited generator, shore side or grid power
Unique PowerAssist - Boosting the capacity of shore or generator power
Input Voltage range: 38 to 66 Volt DC
Output voltage: 230 Volts AC +/-2% @ 50 Hz
Continuous output power: 10,000 Volt-Amps @ 77oF
Zero load power: 60 Watts; 15 Watts in search mode
Charge current (house battery): 140 Amps
Dimensions: 18.5" x 13.78" x 11.02" inches
Weight: 90.38 pounds
5 year warranty
The difference here between an inverter’s specified VA rating and Watt rating is referencing power factor and crest ratio both of which can affect the apparent power vs the actual power and peak wave form vs RMS on the inverter. Most inverter manufactures derate their specified inverter watt output to account for loads with poor power factor and wave distortion."
