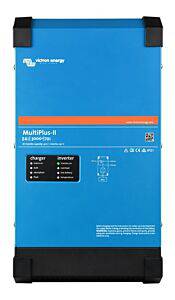

Victron MultiPlus-II inverter & charger 3000 VA 24 Volts DC, 120 Volts AC, 70 Amp charger
Victron MultiPlus-II inverter & charger 3000 VA 24 Volts DC, 120 Volts AC, 70 Amp charger
Regular price
$997.05
Regular price
Sale price
$997.05
Unit price
/
per
Couldn't load pickup availability
"Victron 3000W 24VDC 120VAC Inverter & Charger
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals
The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world,, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more…
Features and Specifications:
Multifunctional, with intelligent power management
Two AC Outputs
Virtually unlimited power thanks to parallel operation
Three phase capability (requires three MultiPlus units)
Split phase options
PowerControl - Dealing with limited generator, shore side or grid power
PowerAssist - Boosting the capacity of shore or generator power
Four stage adaptive charger and dual bank battery charging
Input voltage range: 19 to 33 Volts DC
Output voltage: 120 Volts AC +/- 2% @ 60 Hz
Continuous output power (77° F): 3,000 Volt-Amps (VA)
Zero load power: 13 Watts; 3 Watts in search mode
Maximum battery charge current: 70 Amps
Dimensions: 22.75" x 10.9" x 5.82" inches
Weight: 41.9 pounds
5 year warranty"
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals
The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world,, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more…
Features and Specifications:
Multifunctional, with intelligent power management
Two AC Outputs
Virtually unlimited power thanks to parallel operation
Three phase capability (requires three MultiPlus units)
Split phase options
PowerControl - Dealing with limited generator, shore side or grid power
PowerAssist - Boosting the capacity of shore or generator power
Four stage adaptive charger and dual bank battery charging
Input voltage range: 19 to 33 Volts DC
Output voltage: 120 Volts AC +/- 2% @ 60 Hz
Continuous output power (77° F): 3,000 Volt-Amps (VA)
Zero load power: 13 Watts; 3 Watts in search mode
Maximum battery charge current: 70 Amps
Dimensions: 22.75" x 10.9" x 5.82" inches
Weight: 41.9 pounds
5 year warranty"
